Repair a Thane H2O X5 Steam Mop
I volunteer at a couple of Repair cafes in the UK, and we have had a couple of these popular Thane H2O X5 Steam mops in with similar symptoms and fixes.
These devices generate steam from water held in a chamber and direct this to the head, to which a mop cloth can be attached. This steam is hot enough to break down dirt, grease while killing off any bacteria. The owners loved them and were very happy to get them working again.
The failed units no longer pumped water through the boiler chamber , and hence generated no steam despite the power light coming on.
The units will suffer with lime scale , as any electrical appliance that boils water will. However the "Catch 22" is that in order to pump a descaler through the pump to descale it, you need a working pump to extract water from the main reservoir via its umbilical hose.
I did a bit of googling and found this video from the always excellent bigclivedotcom
Clives video is the key to fixing these units.
First you need to disconnect from the mains and remove the handle which does not contain any power. It's also useful to remove the triangular cleaning head. To access the motor you carefully need to remove the rear panel. This was held on by around 8 screws, several with HEX fittings. This then enables you to very carefully open the unit
Inside we see the pump and the insulated steam chamber. Note the pump has two pipes , one at either end
a close up on the pump with its retaining screw removed. Once out you can remove the black retaining clip that holds the pump in place
With the black retaining bracket removed we can see it's very similar to the pump in Clive's video
First we need to remove the silicone pipes. I used tweezers to open the clips
Be careful, I found it very hard to remove the top (brown in the picture) pipe without splitting it and in fact needed to order a length of replacement hose online, having split the pipe in extraction. There is not enough slack to allow you to cut off even a short split section

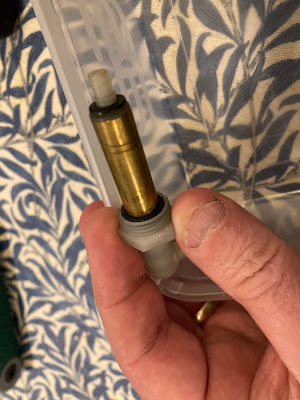

now I can unscrew the inner section of the pump
gently remove the core
the moving part of the solenoid pump
photograph the O ring positions
separate the parts and immerse them in a descaler such as white vinegar
be very gentle with the spring loaded part of the solenoid
more washers and O rings
Descale all the parts, then rinse in water and reassemble
I made good the split pipe with some new silicone pipe , end-to-end. The size is 4mm inner diameter, with a 2mm wall thickness. Carefully refit the metal retaining clips to secure the pipes in place.
Once I had put everything back together, I ran some water through the steamer to prove that the pump was now able to pump water into the insulated boiler chamber. Once this was done I refilled the water reservoir with a descaling solution of acetic acid, or white vinegar and run the machine in bursts, so that descaler was pumped into the chamber , then allowed to work , then replaced. I did this over 4 hours with a few minutes on , then left off for 20.
